Details:

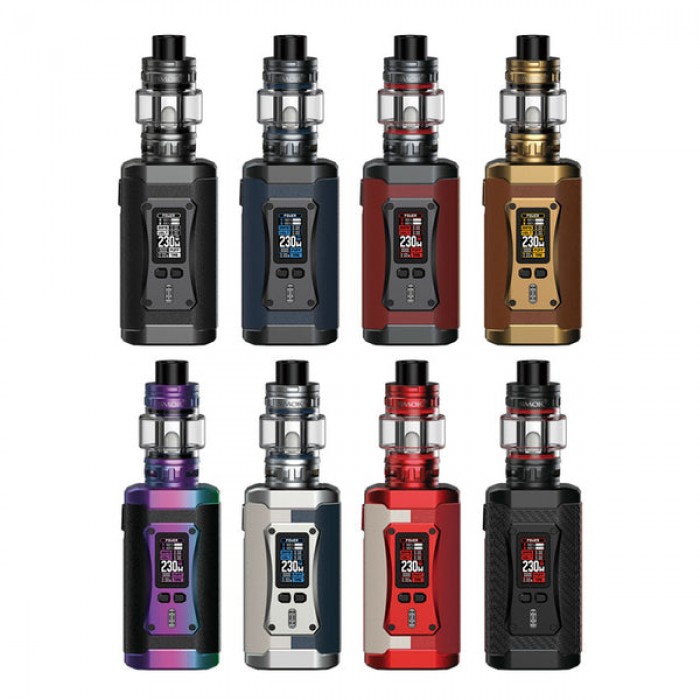

SMOK Morph 2 Kit is an updated version of its predecessor SMOK Morph 219 Kit. SMOK Morph 2 Kit is composed of SMOK Morph 2 Mod and SMOK TFV18 Tank. Morph 2 is designed with zinc alloy to improve durability, while the soft leather covered on the surface has a comfortable touch. The front is decorated with a 0.96-inch display, control buttons, and charging port, and the fire button has been placed on the side. SMOK Morph 2 uses two 18650 batteries for operation. The dual 18650 battery has double battery life and sufficient power, creating conditions for immersive vaping. Through the USB Type-C port, you can run balanced charging at a maximum speed of 2.0A inside the mod, which not only extends the life of the battery but also shortens the charging time. Morph 2 is equipped with an IQ-S chip that not only provides a very fast 0.001 second firing time but also provides convenient functions such as password protection and customizable output modes (Power/TC) to support different vape styles. The brand new TFV18 Sub-ohm Tank is connected to SMOK Morph 2 Mod via 510 thread. Boasting a colossal e-juice capacity of 7.5mL, the TFV18 allows you to vape all day with virtually no refilling. At the top is a resin drip tip and a small button to reveal the filling port. Simply press the button and push the top portion to the side to begin loading up your TFV18 tank with your favorite e-liquid. SMOK TFV18 Tank is compatible with the newly designed replaceable meshed coils: 0.33ohm TFV18 Meshed Coil and 0.15ohm TFV18 Dual Meshed Coil. The two atomizer coil heads are equipped with a mesh structure, which can provide a large area, produce a strong taste, and bring the best vapor generation effect. These two coils are included in the kit. The TFV16 Sub-Ohm tank promoted the base of the atomizer and has a bottom airflow control ring to improve the airflow cross-section. The draw resistance can be continuously adjusted from a limited DL draw to a fully open draw.
Features
1. New TFV18 Tank, big capacity, top filling system, with child-proof design
2. Compatible with new generation of TFV18 coils and TFV16 coils
3. Dual 18650 battery, output power 1-230W; with IQ-S chip to provide 0.001s firing time
4. 0.96'' display to provide you selected working mode: Power/TC mode
5. Engineered with zinc alloy & leather for a comfortable tactility
Technical Data:
SMOK Morph 2 Mod
Material: Zinc Alloy+Leather
Size: 88mm x 47.5mm x 31.7mm
Battery: Dual 18650 Batteries (Not Included)
Chipset: IQ-S chip
Power Range: 1W-230W(VW)/ 10W-80W(TC)
Standby Current: <300uA
Input Voltage: 6.4V-8.4V
Output Voltage: 1.2V-8.2V
Firing Time: 0.001S
Charging Port: Type-C
Charging Voltage: 5±0.2V
Charging Current: MAX 2A
Resistance Range: 0.1ohm-2.5ohm (VW) / 0.05ohm-2ohm(TC)
Temperature Range: 200°F-600°F /100°C-315°C
Protections: 8-second Cut Off/Atomizer Detection/Over-heating/Short Circuit/Low-battery Warning/Reverse Polarity/Over-discharge Protection
Colors: Black, Blue, Red, Brown, Prism Rainbow, White Blue, White Red, Black Carbon Fiber
SMOK TFV18 Tank
Material: Stainless steel
Diameter: 31.6mm
Height: 66.3mm
Capacity: 7.5ml (with TFV18 Meshed 0.33ohm Coil) 6.5ml (with TFV18 Dual Meshed 0.15ohm Coil)
Filling: Top Filling (press the button and slide the top cap)
Coil: TFV18 Meshed 0.33ohm Coil, TFV18 Dual Meshed 0.15ohm Coil Recommended Power:80-140W (Best at 100-110W)
Thread: 510
Colors:Plating Matte Black, Stainless Steel, Gold, Red, Blue, 7-Color
Package Includes:
1 x MORPH 2 Mod
1 x TFV18 Tank (7.5ml)
1 x TFV18 Meshed 0.33ohm Coil (Preinstalled)
1 x TFV18 Dual Meshed 0.15ohm Coil
1 x Bulb Glass Tube Replacement
1 x Type-C Cable
1 x User Manual
